DESCRIPTION

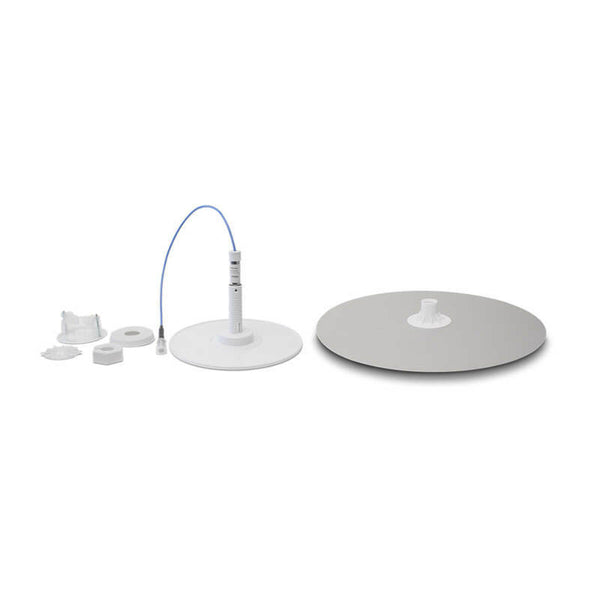

Boost your cellphone signal with Wilson Electronics 4G Low-Profile 50 Ohm Dome Antenna for better and faster service! The Wilson Electronics' new 4G Low-Profile Dome-Style is designed to be used with an amplifier and features up to 6 dB of gain. The Wilson 4G antenna broadcasts an amplified cell phone signal for 3G/4G LTE with most carriers in USA and Canada. The ultra-thin and white radome makes it easier to conceal and blend in with its surroundings, preventing an eye-sore.

SPECIFICATIONS

• Frequency Band: (MHz) 608-960 / 1695-2200 / 2300-2700
•  Nominal Impedance: 50
•  VSWR (698-960 MHz): 2:1
•  VSWR (1695-2200 MHz): 2:1
•  Average Peak Gain (608-960 MHz): 4 dBi
•  Average Peak Gain (1695-2200 MHz): 6 dBi
•  Average Peak Gain (2300-2700 MHz): 6 dBi
•  Maximum Power Input: 40 W
•  Connector Type: N-Female
•  Efficiency (608-960 MHz): 70%
•  Efficiency (1695-2200 MHz): 65%
•  Efficiency (2300-2700 MHz): 60%
