DESCRIPTION

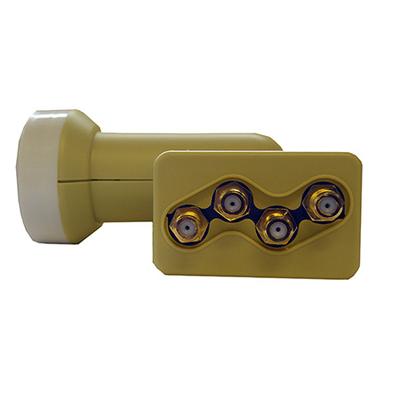

High stability, high gain, yet low noise figure quad output LNBF. Allows reception of Ku band signals with the highest possible signal level and quality
4 output LNBF for FTA Satellite, allowing to connect up to 4 receivers

SPECIFICATIONS

• Run up to 4 receivers from 1 Ku Dish
•  Lightweight
•  Fits any standard Ku dish with 40mm universal LNBF mount
•  Pull-down weather cover for protecting coax connectors
•  Outputs: 4
•  RF Input: 11.7 - 12.75 GHz
•  IF Output: 950 - 2000
•  LO Frenquency: 1075GHz
•  Noise Figure: 0.5dB
•  Gain: 60dB
•  Stability: 3MHz (max)
•  Box Contents: LNBF
