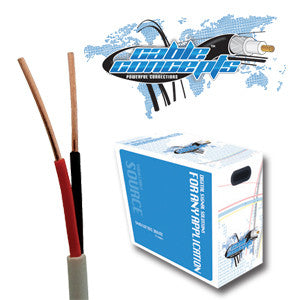

14 gauge (65X0.33mm) 2 strand bare copper conductor; PVC insulation, with ripcord in white PVC jacket.
Application: Commercial audio, Security systems, Power limited control, Sound & audio, Intercom/PA systems, Broadcast and Nurse call
1) Physical Dimensions
Center Conductor:----------65X0.33+0.01mm Strand Bare Copper
Insulation:--------------------2.0+0.02mm PVC
Insulation Thickness:-------0.33mm
Ripcord:----------------------YES
Jacket:------------------------5.0+0.03mm PVC
Jacket Thickness:-----------0.38mm
2) Mechanical Specification
Operating Temperature Range:---------------20℃ To +75℃
Cable Weight:---------------------------------37.50 Lbs/Mft
Min. Bend Radius:----------------------------2.2 in.
3) Electrical Characteristics
Operating Voltage:----------------------------300 VRMS
Max. Conductor DCR:------------------------2.62Ω/Mft
Capacitance:------------------------------------32 pF/ft
4) Approval:
NEC/(UL), CSA, FT4, CMG, CEC/C(UL)
