DESCRIPTION

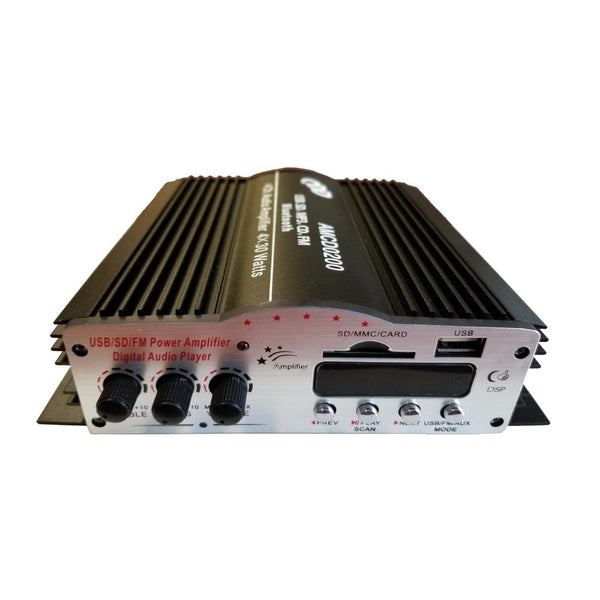

The CDD AMCD0200 Bluetooth amplifier features MP3 file playback, FM radio reception, versatile line inputs, and delivers four channels of 30-watt power! It's everything you need, all in a small, intuitive package.
Discover big power and true flexibility from a mini amp! The AMCD0200 from CDD includes digital file playback (via USB or SD/MMC slots), Bluetooth capability, FM radio reception with a built-in tuner, and versatile RCA and 3.5 mm analog inputs. Use the adjustable bass and treble tone controls to get the right balance from your music. The AMCD0200 kicks out powerful sound with 30 watts of robust power into four channels. Remember when you needed a bulky, expensive receiver to get all this?

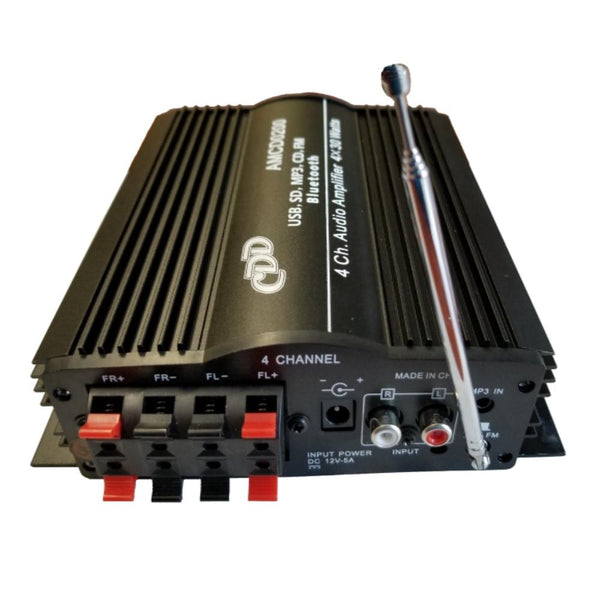

Four sets of spring-clip speaker terminals, plus RCA and 3.5 mm input jacks, ensure the AMCD0200 has all the connections you need to build a high performance audio system. Integrated mounting tabs make it easy to install your CDD Mini Amplifier anywhere. The telescoping antenna provides excellent FM reception, creating maximum audio source versatility. On board controls and included wireless remote make operation of this CDD amp simple. Discover the power of this remarkably complete mini amplifier!
• Convenient digital audio player with USB and SD inputs
• 4-channel amplifier design with 30 watts per channel
• FM radio reception with built-in tuner
• Adjustable bass and treble controls for lifelike sound
• RCA and 3.5 mm line inputs
• Bluetooth capability

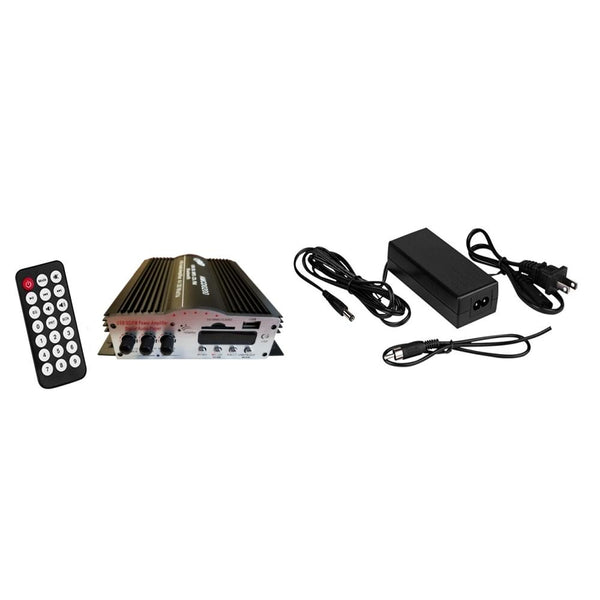

• Wireless remote control included
• 5 Amp power supply
SPECIFICATIONS
- Power output: 4 x 30 watts
- Input impedance: 47K ohms
- Output impedance: 4 - 16 ohms
- Frequency response: 20 - 20,000 Hz
- Minimum THD: 0.02%
- Input voltage: 9 - 14.4 VDC
- Rated input current: 1A - 3A
- DC plug size: 2.1 mm x 5.5 mm
- DC input polarity: Center positive
- 5 Amp power supply
- Dimensions: 6-7/8" L x 1-5/8" W x 5-3/4" D
SPEAKER SPECIFICATIONS

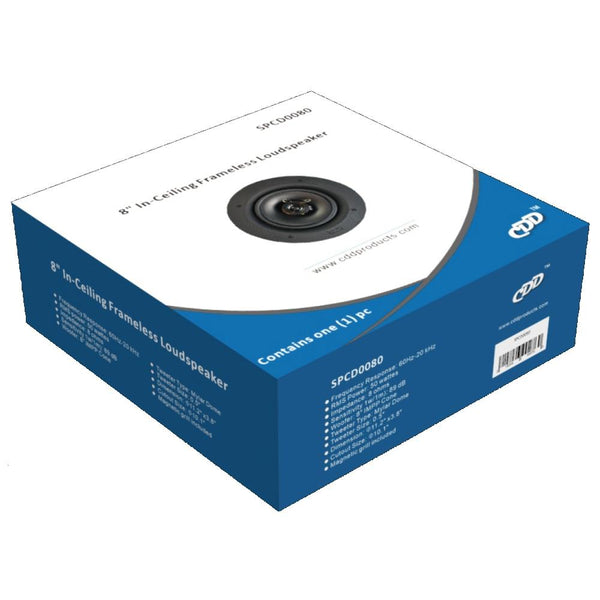

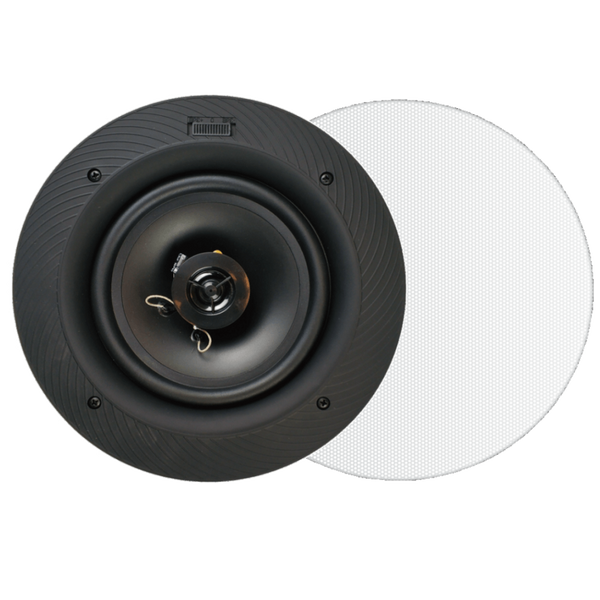

Our SPCD0080 is a 2-way ceiling speaker with a high quality 8" IMPP cone woofer and a 0.5" Mylar dome tweeter in a co-axial arrangement. The IMPP cone ensures high-quality, long-lasting sound that will bring movie action and music vocals to life.
The 0.5" Mylar dome tweeter offers the smoothest high frequency response. The high-grade rubber edge allows for true audio accuracy and quality that will last. Our SPCD0080 is designed for optimal performance in a wide variety of home entertainment applications, from providing relaxed background music to a high impact home theater system.
The sophisticated crossover works to deliver deep bass and exceptional top-end frequency response. Efficient and quick installation using improved swing-out dog legs and a frameless design. Micro edge magnetic grills provide for an unobtrusive appearance while allowing these speakers to fit beautifully in any interior design.
• Woofer Type IMPP Cone
• Woofer Size 8"
• Tweeter Type Mylar Dome
• Tweeter Size 0.5"
• Frequency Response (+-3db) 60 Hz - 20 KHz
• Sensitivity 89 dB
• RMS Power 50 Watts
• Nominal Impedance 8 Ohm
• Product Dimensions 11.2" x 3.8"
• Cutout Dimensions 10.1"
• Product Weight 6.4 lbs
