DESCRIPTION

Winegard's new HDA series of Distribution Amplifiers was designed to meet the market demand for a heavy duty, quality built, cost effective solution for the amplification and distribution of analog/digital broadcast signals from Off-Air and cable TV stations. Both the HDA-100 & HDA-200 are housed in an industrial grade, weather resistant enclosure. Each unit has an RF input, amplified RF output, and DC power insertion jack. Each amplifier also provides a 5-42 MHz 2-way bi-pass.

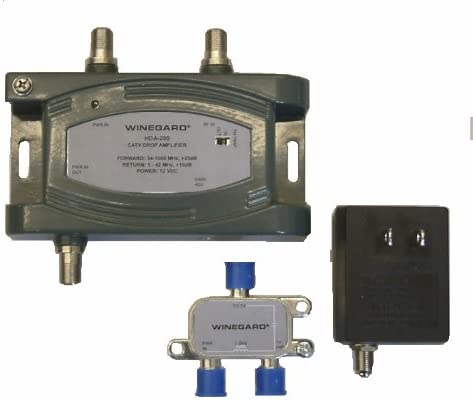

The HDA-200 has a single RF input, 24 dB gain, single RF output, with a 5-42 MHz 2-way bi-pass at +12 dB gain. The HDA-200 has 0-18 dB gain control and 20 dB "switchable" FM trap, and a return path.
• If using an indoor antenna, dont expect a big boost in signal unless your cable lengths is over 20 ft and/or you are splitting the signal
• Amp works best when located as close to the source (Antenna, or Cable TV Drop)
• Can be located anywhere in the system its convenient
• Housing Dimensions: 4.90"W x 3.92"H x 1.5"D
• Power Supply Voltage: 12VDC-200 mA
• Power Supply and Inserter Included
• Bandpass Forward: 54-1000 MHz
• Weather resistant enclosure
• Noise Figure: 4.5 dB
• Adjustable Gain
• Gain: 24 dB
• FM trap

SPECIFICATIONS

• Bandpass Forward: 54-1000 MHz
•  Bandpass Reverse: 5-42 MHz
•  Max Output per Channel (80 ch CATV): +25 dBmV (Note 1)*
•  Max Output per Channel (16 ch off-air): +40 dBmV (Note 2)**
•  Max Input per Channel (80 ch CATV): +8 dBmV (Note 1)*
•  Max Input per Channel (16 ch off-air): +23 dBmV (Note 2)**
•  Max Input Reverse Amp: +23 dBmV (at 1dB comp)
•  Gain: 24 dB
•  Gain Control: 0-18 dB
•  Reverse Gain: +12 dB
•  Noise Figure: 4.5 dB (at max gain)
•  FM Trap: -20 dB (95-108 MHz)
