The OS MINI 4K is a UHD 4K SAT Receiver H265 / HEVC and comes equipped with a Multi Stream Tuner & Blindscan support. The OS MINI 4K offers you S2X tuner, HDMI output up to 2160p, 2 x USB, a LAN input and a 2in1 remote control for the receiver and your TV. With an ultra high definition resolution of up to 2160p and the powerful dual core ARM 1.5GHz processor, it will be a loyal and fast TV companion!
Hardware and performance of the Linux SAT receiver
Under the hood of the Linux combo receiver from Edision there is a dual-core ARM 1.5 GHz processor, 8 GB eMMC flash memory and 1 GB DDR4 RAM 2400 MHz.
The OS MINI 4K is a UHD 4K SAT Receiver H265 / HEVC and comes equipped with a Multi Stream Tuner & Blindscan support. The OS MINI 4K offers you S2X tuner, HDMI output up to 2160p, 2 x USB, a LAN input and a 2in1 remote control for the receiver and your TV. With an ultra high definition resolution of up to 2160p and the powerful dual core ARM 1.5GHz processor, it will be a loyal and fast TV companion!
Hardware and performance of the Linux SAT receiver
Under the hood of the Linux combo receiver from Edision there is a dual-core ARM 1.5 GHz processor, 8 GB eMMC flash memory and 1 GB DDR4 RAM 2400 MHz. Through this integrated hardware it brings Edision OS Mini on switching times of less than one second - at a comparatively low power consumption.
Technical specifications:
4K UHD DVB-S2X
E2 Linux
H.265 / HEVC
Dual core ARM 1.5 GHz
8GB eMMC Flash
1GB DDR4 RAM
Features:
Multi Stream T2MI
Blind scan support
Web browser with HbbTV
Free internet streamingTV and radio
Unlimited channel memories
10/100 Mbps Ethernet
Channel change in less than a second
Extensive / programmable EPG
Expandable with add-ons & plug-ins
Support of multiple bouquet lists
Multilingual OSD, skin support
Channel search: fully automatic or manual
Time shift function and various timers
Fast Teletext & OSD and VBI subtitle support
DiSEqC 1.0, 1.1, 1.2 and 1.3 (USALS)
Support SCR / CSS (EN50494 & EN50607)
Power consumption of less than 0.5 watts in low-power standby mode.
Very sensitive tuner for receiving even weak signal channels.

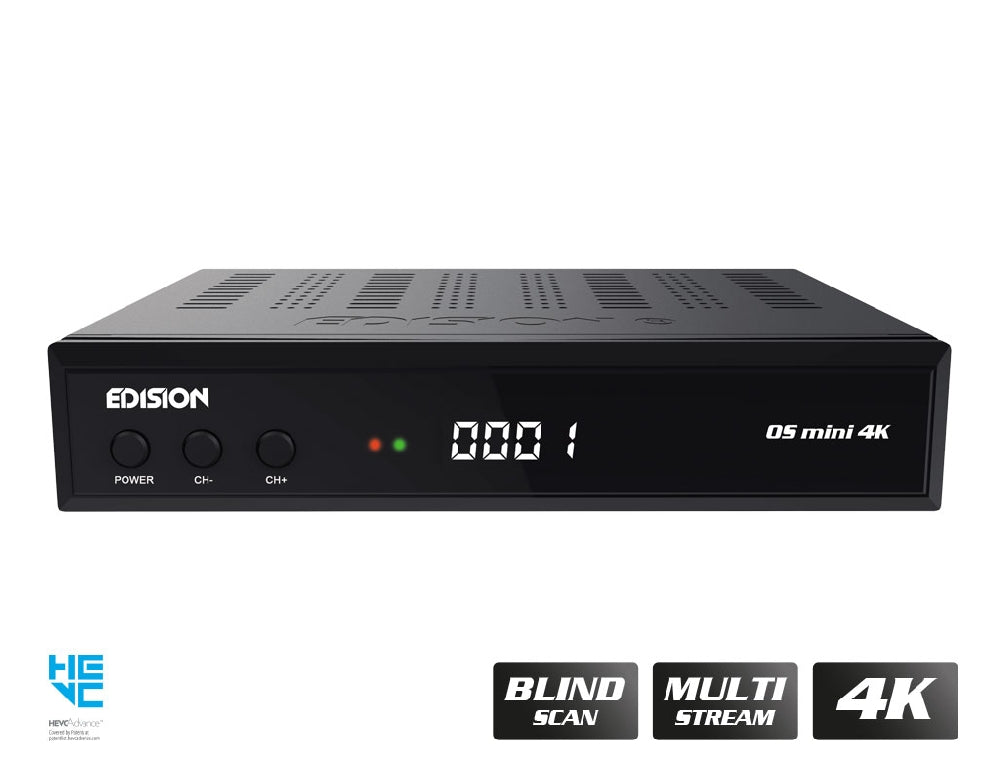

Front:
Display: LED (standby, recording)
Display buttons: Power, Channel - / +
Connections:
1x satellite IF input
1x HDMI 2.0a
1x S / PDIF (optical audio output)
1x smart card slot
1x Ethernet connection
2x USB 2.0
1x Jack to RS232
1x Jack to IR
1x DC connection (for external power supply)
General:
Housing: 180mm case
Dimensions: (W x H x D): 180x35x140 (mm)
Weight: 0.7 kg
Color: Black
Guarantee: 2 years
Scope of delivery:
1x Edision OS Mini 4K (DVB-S2X) satellite receiver
1x remote control
1x power supply 12V 1A
1x Jack to IR connection cable
1x USB extension cable
1x Start Guide EN / DE / GR
2x AAA batteries
