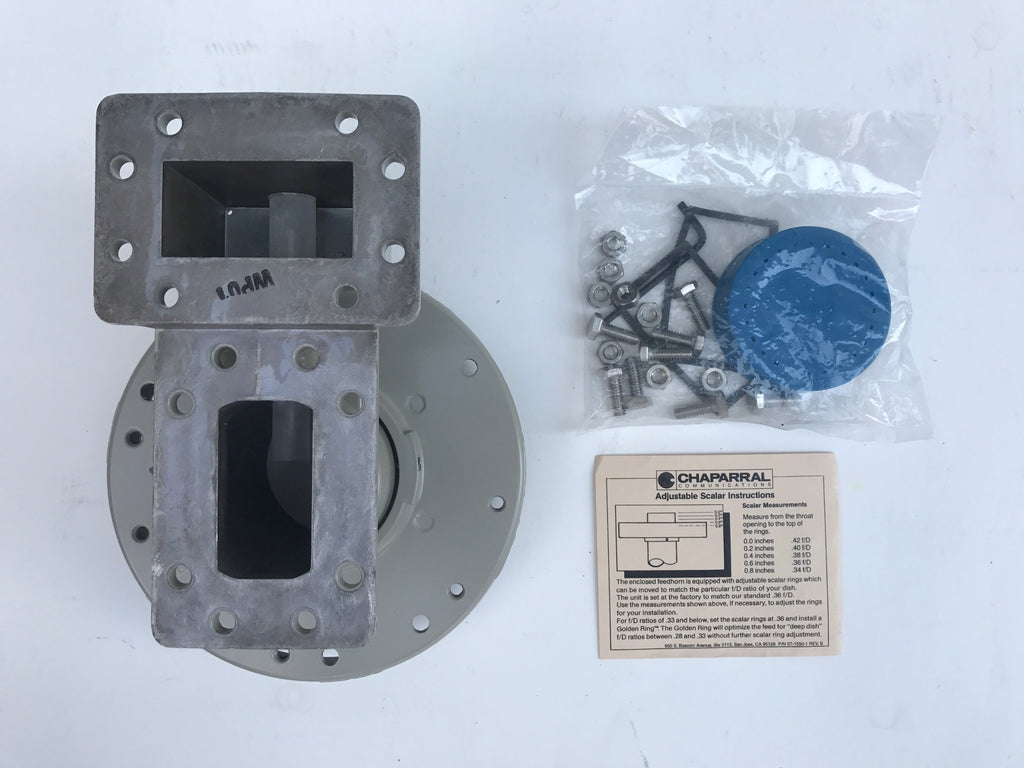

The Chaparral Dual Feed feedhorn is an orthomode transducer for simultaneous reception of horizontal and vertical C-Band polarities. Due to its reliable performance with virtually no signal loss, Chaparral's Dual Feed is the most trusted feedhorn for commercial applications
Features
- 100% tested
- Adjustable scalar ring
- Cast-in f/D gauge
- Mounts to all standard satellite dishes
- Cast aluminum construction
- Chip-resistant polyurethane powder coating
- Two-year warranty
- Made in the USA
Specifications
| Part Number | 11-1329-1 |
| Frequency Range | 3.7-4.2 GHz |
| VSWR | 1.5:1 Max |
| f/D Range | .33 to .45 |
| Cross Pol. Isolation | 35 dB Min |
| Output Ports WR | 229 Compatible |
| Temperature Range | -40° C to +60° C |
| Size | 8.0" x 6.5" x 5.0" |
| Weight | 2.23 lbs. |
