Use the whip antenna with the meter to quickly assess indoor signal levels, identify dead zones and map coverage needs. Then, measure outdoor signal levels to determine the ideal location for outdoor antenna placement. Also, identify peak antenna alignment by connecting the meter directly to the antenna using the provided cable.
Tech specs
- Frequencies: 728-746 LTE / 746-757 LTE / 869-894 Cellular / 1930-1995 PCS / 2110-2155 AWS
- Input Impedence: 50 Ohm
- Max Gain Shown: -40 dBm
- Receive Sensitivity: -110 dBm
- Tolerance: <3 dB
- AC Power Adapter: Input: AC 110V, 60 Hz / Output: DC 5V
- DC Power: (4) AAA NiMH Rechargeable batteries
- Power Consumption: <1.5 Watts
- RF Connector: SMA Female
- Cable: RG-174
- Battery Life: Standby: 3.5 hours / Active: 2.5 hours
Box Contents

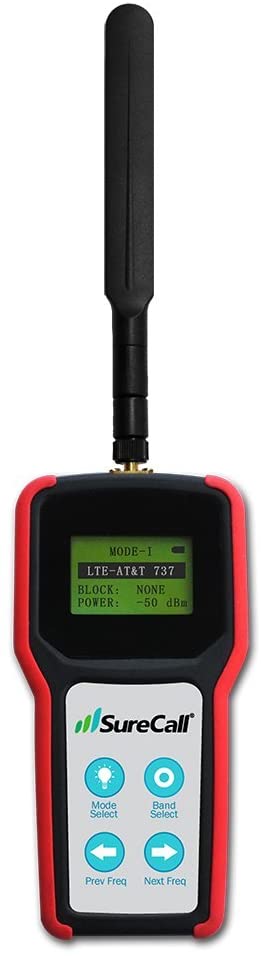

- RF Signal Meter
- Flat right-angle antenna with SMA-Male connector
- 24" SMA-Male to N-Male Cable Connector
- 9" SMA-Male to N-Female Cable Connector
- N-Female to F-Male Connector
- N-Female to F-Female Connector
- 110V AC Power Adapter
- (4) AAA NiMH Rechargeable batteries
