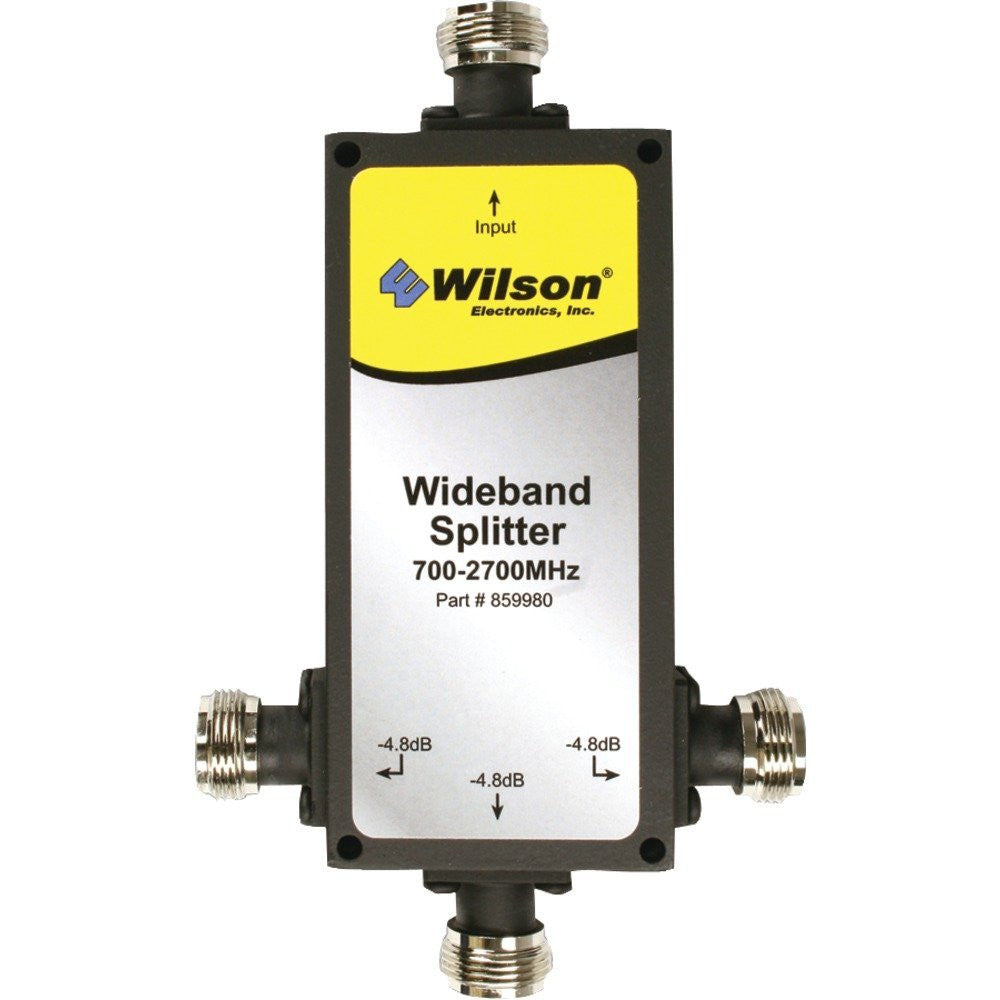

The Wilson 859980 is a Three-way -4.8 dB Splitter that allows you to split the amplified signal with minimum signal loss to three inside antennas in similarly sized areas. This is a Wide Band device, which means it will serve all dual band and iDen applications. Comes with N-Female Connectors.
Application/Usage:
- For splitting the amplified signal with minimum signal loss to three inside antennas in similarly sized areas.
Package Includes:
- Wilson 859980 Three-way Splitter
Product Features:
- One input - three equal outputs
- N-Female connectors
Technical Specifications |
|
Frequency | 700-2700 MHz |
Impedance | 50 ohms |
Connector | N-Female |
Loss | −4.8 dB |
Signal Split Ratio | Equal |
