DESCRIPTION

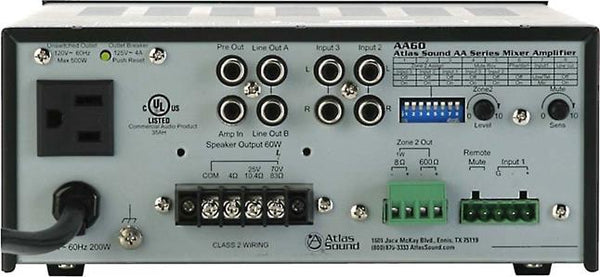

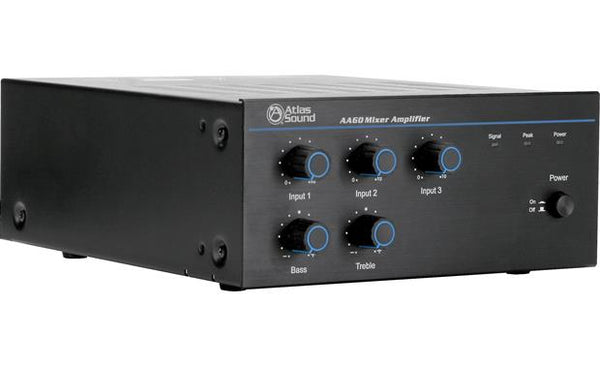

The AtlasIED AA60 is a 3 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With (1) mic/line input and (2) stereo line inputs, the AA60 will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 25V, 70.7V, and 8Ω outputs are provided.
The output power of 60 Watts will match nicely with AtlasIED FAP, SM, SD, and GD series speakers. In fact, in an 11’ ceiling application, the AA60 will provide power for up to 200 SD72W speakers tapped at .25 Watts each while providing upwards of 84dB in the direct sound field at ear height

SPECIFICATIONS

• 1 Mic In w/Phantom Power
•  2 Stereo Line Inputs
•  Dual Line Outputs
•  Pre Out/ Power In Patch
•  Remote and VOX Activated Mute
•  Route Any Source Combination or Entire Mix Bus to Zone 2 (MOH Out)
•  Special Low Cut Filter is 6dBu /octave at 400Hz and Also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
•  60 Watts of True Output Power
•  UL60065 Listed
•  FREQUENCY RESPONSE: 50Hz - 20kHz
•  CONNECTOR TYPE: Phoenix and RCA
•  HEIGHT 3.66" (94mm) - WIDTH 8.27" (210mm) - DEPTH 10.87" (276mm)
•  VOLTAGE COMPATIBILITY:110V - 120V
