Details:

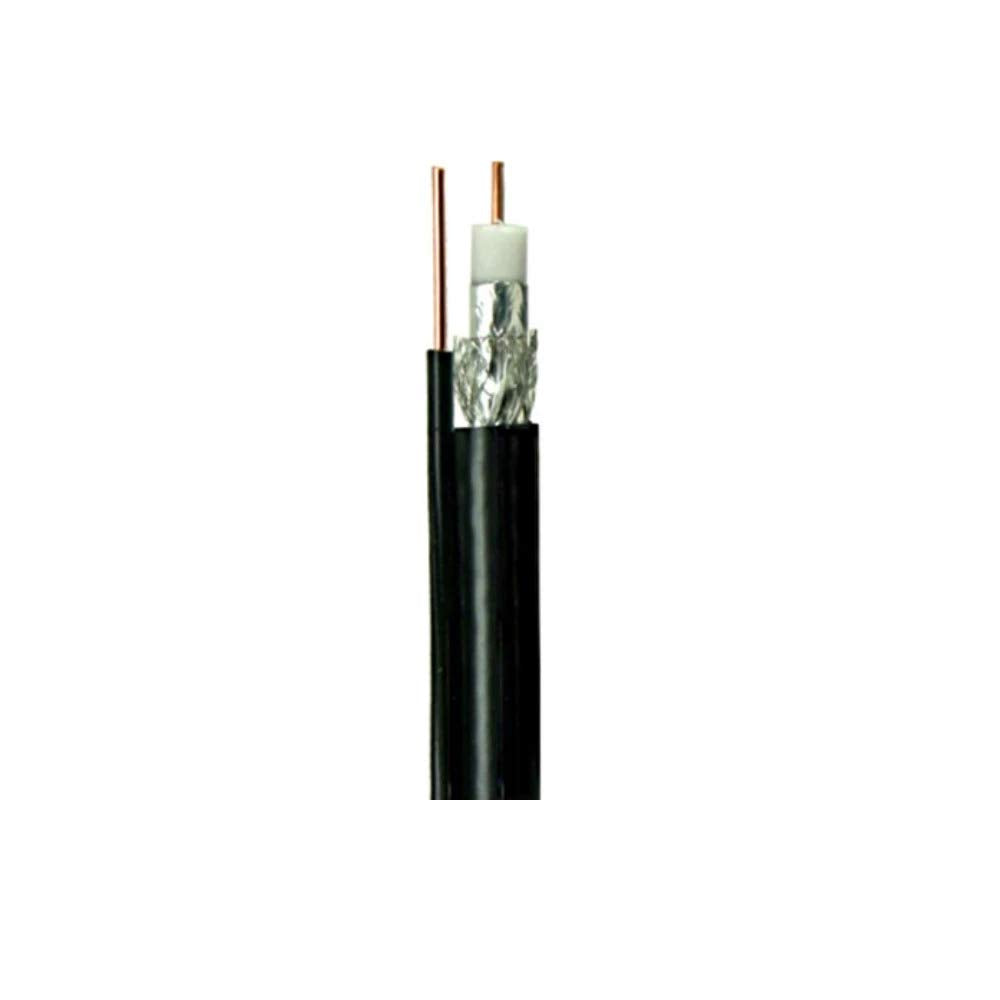

1) Construction
Center Conductor:1.02+0.01mm Solid Bare Copper
Dielectric:4.57+0.05mmFoam PE
Shield:Bonded Al Foil
Braid Coverage:60%X16X5X0.12+0.005mmAlu-Mag
Jacket:6.90+0.05mm PVC
Messenger:1.2mm Copper Clad Steel Wire
Jacket:2.7mm PVC
2) Characteristics
Operating Temperature Range:-40℃ To +75℃
Sparker Test:4000VAC
Impedance:75+3 Ohm
Capacitance:54+3pF/m
Velocity of Propagation:85%
Return Loss:20dB min (5-2300MHz)
3) Approval
Approvals: CSA, CMG, CUL, UL, ISO
