DESCRIPTION

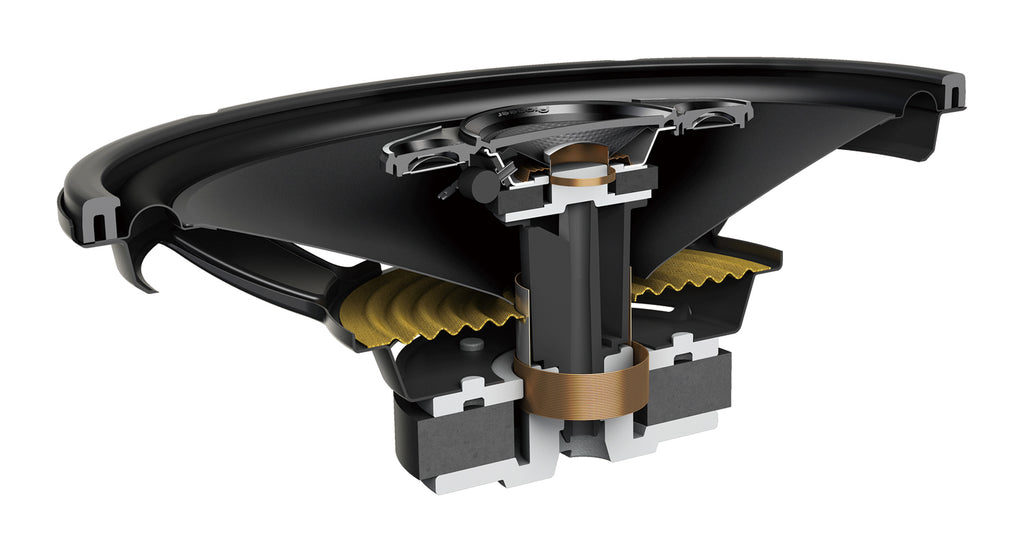

Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.
Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

SPECIFICATIONS

• Size 6 x 8" (145mm x 204mm) 4-Way
•  Max Music Power (Nominal) 350W MAX (80W Nom)
•  Frequency Response 34Hz - 34kHz (-20dB)
•  Sensitivity 88dB (±1.5dB)(1W/1m)
•  Impedance 4Ω
•  Mounting Depth 62mm
•  Cut Out Dimensions133mm x 191mmSurround
•  Material Elastic Polymer
•  Woofer Magnet Material Y-30
•  Woofer Basket Material Metal
•  Woofer Magnet Weight220g
•  Woofer Cone Material IMPP Composite
•  Tweeter Type PIEZOELECTRIC x 2
• Tweeter Diaphragm MaterialPET (t=75µm)
