DESCRIPTION

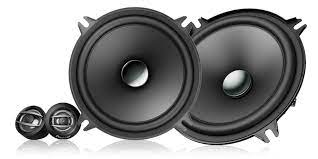

Easily Upgrade to High Performance. The Pioneer A Series speaker sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup expands flexibility and improves acoustic performance. The integrated inline crossover network allows for increased installation flexibility without the need of an outboard module. Included with the Pioneer A Series, are multi-fit installation adapters and tweeter mounts (when applicable).
Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers delivering uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
SPECIFICATIONS
- 50 Watts RMS, 300 Watts max
- Frequency range: 42 Hz to 38 kHz
- Crossover frequency: 3.2 kHz
- 4 ohms impedance
- 20 mm polyimide hard dome tweeters
- Sound Pressure Level (Sensitivity): 87dB (+- 1.5dB)
- 5-1/4 in. carbon and mica reinforced IMPP (injection molded polypropylene) cone construction
- Includes multi-fit installation flexible tweeter mounting hardware
WOOFER
- Diameter: 5-1/4
- Cone Material: Carbon and mica reinforced IMPP in moonstone gray
- Center Cap Material: Film ( PET )
- Surround Material: Elastic polymer
- Basket Material: Iron Plate Press
- Magnet Materia: 7.76 oz
TWEETER
- Type: Dome
- Diameter: 13/16"
- Diaphragm Material: Polyimide
- Magnet Material: Neodumiium
- Magnet Weight 0.18oz
