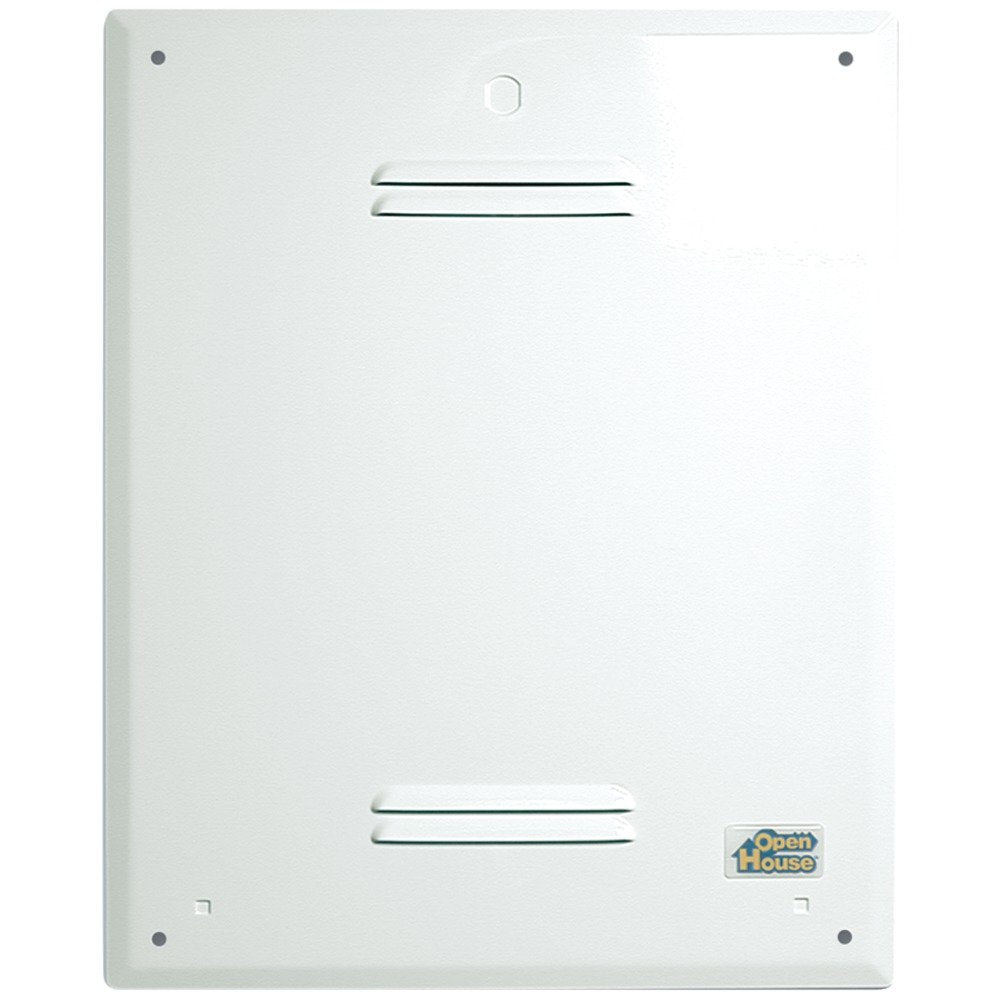

DESCRIPTION

The Model HC18A 18" Enclosure Cover fits on the Model H318 structured wiring enclosure. The ventilated enclosure cover secures and protects the structured wiring components mounted inside the Model H318 enclosure. The cover is power coat painted bright white. The optional Model H208 lock kit can be installed on the cover for additional security.

• Secures and protects components inside the enclosure
•  Bright white powder coat paint finish
•  Four louvered vents for enclosure cooling
•  Accepts the Model H208 lock kit for additional security



ENCLOSURE BOX SPECIFICATIONS

The Model H318 18" Enclosure provides grid mounting space for Linear structured wiring components.

• 18 inches high
•  33 grid inches (2-16.5 inch columns)
•  Fits between studs
•  16 gauge all metal construction
•  Flexi-mount system (slots and tabs allow for surface or flush mount)
•  New electrical knockout in bottom
•  Eight knockouts including two located on the side of the box
•  Accepts H290 or H291 power accessory
•  Optional H208 lock available
•  UL Listed
