DESCRIPTION

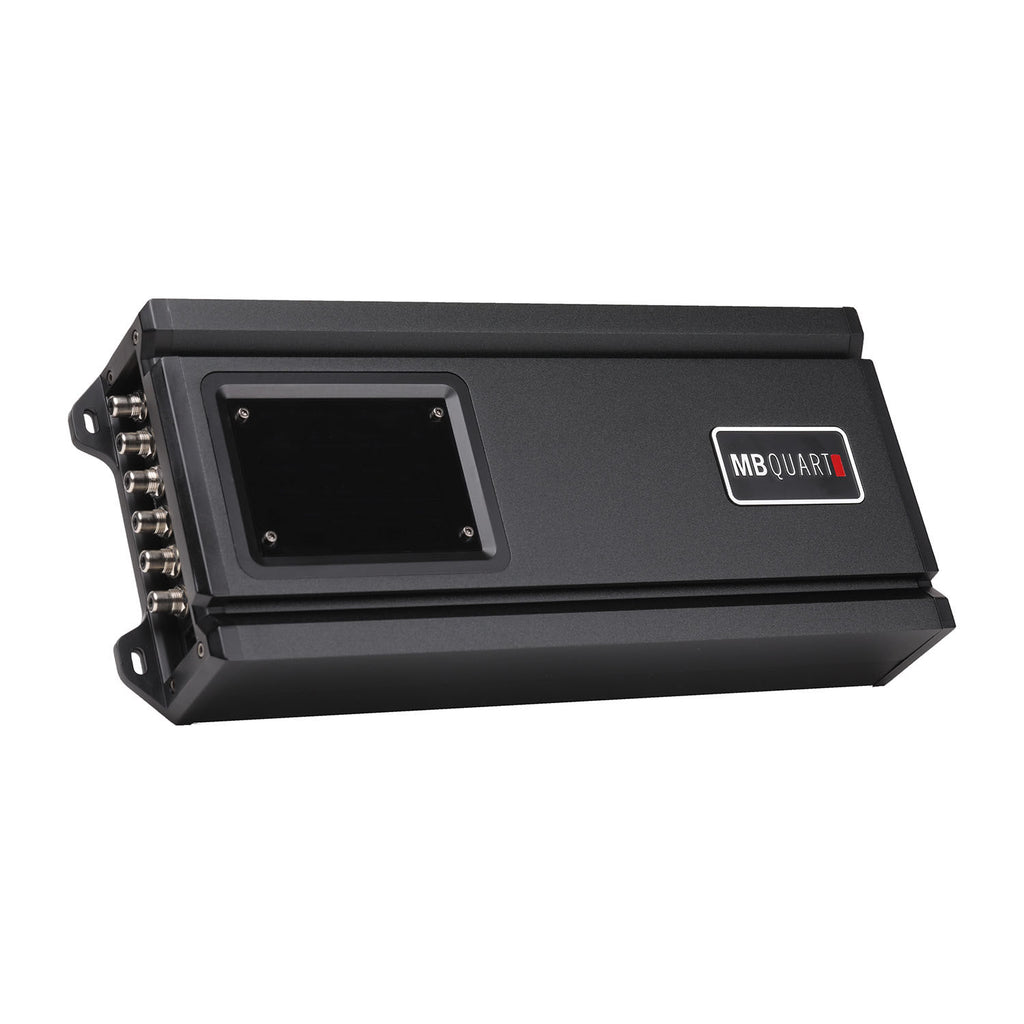

MB Quart Reference series five channel car audio amplifier featuring innovative sound quality and power technology to run four full range channel and a subwoofer channel. The RA1-710.5 is a 700 watt 1 ohm stable (channel 5 only) car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit. Bass remote is included.
SPECIFICATIONS
- 5-channel car amplifier
- 50 watts RMS x 4 + 150 watts RMS x 1 at 4 ohms
- 100 watts RMS x 4 + 250 watts RMS x 1 at 2 ohms
- 100 watts RMS x 4 at 2 ohms + 350 watts RMS x 1 at 1 ohm
- channels 1-4:
- variable high-pass filters (50-250 Hz, 12 dB/octave)
- subwoofer channel:
- variable low-pass filter (50-250 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- switchable subsonic filter (Off/25 Hz, 12 dB/octave)
- preamp and speaker-level inputs
- speaker wire-to-RCA adapters required for speaker-level input
- DC offset-sensing turn-on with speaker-level input
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80A fuse recommended
- warranty: 1 year
