DESCRIPTION

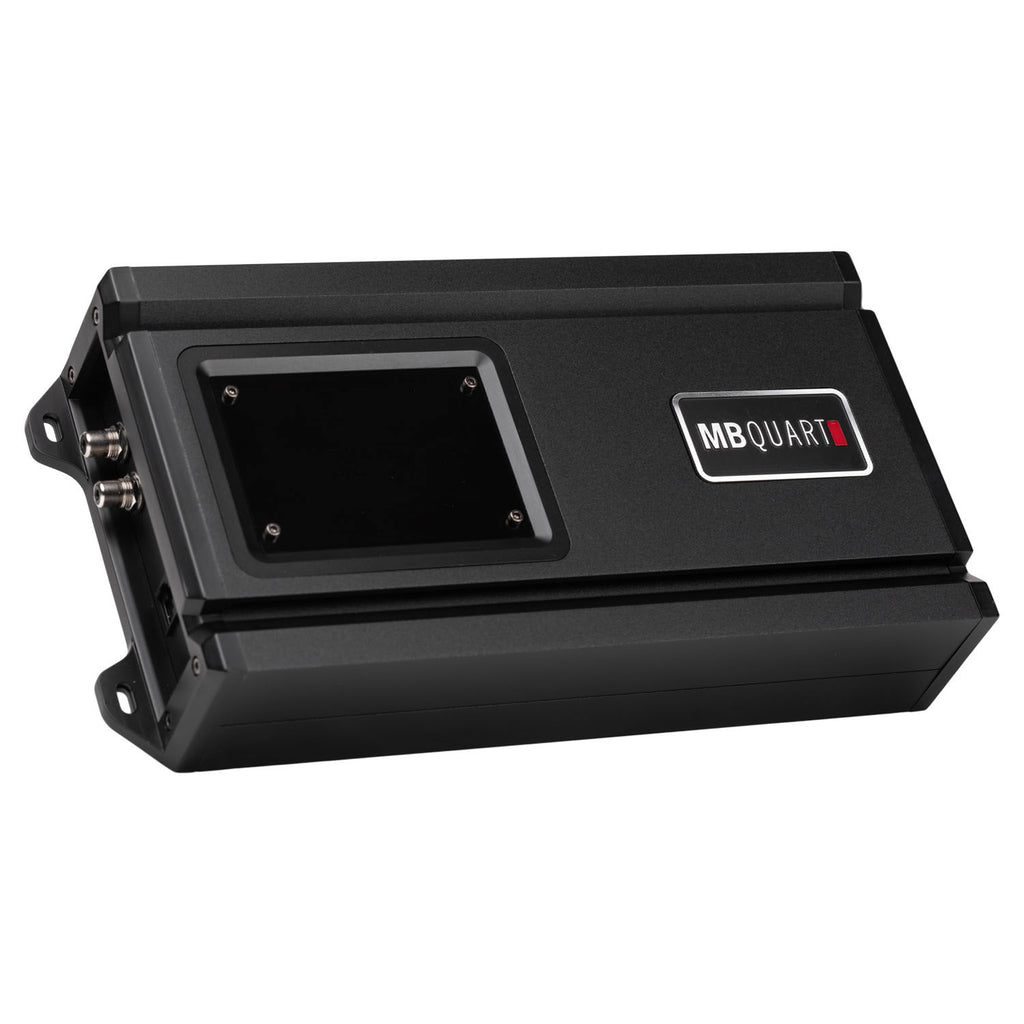

MB Quart Reference series mono subwoofer car audio amplifier featuring innovative sound quality and power technology. The RA1-300.1 is a 300 watt 1 ohm stable car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit. Bass remote is included.

SPECIFICATIONS

•  mono subwoofer amplifier
• 175 watts RMS x 1 at 4 ohms
• 325 watts RMS x 1 at 2 ohms
• variable low-pass filter (50-250 Hz, 12 dB/octave)
• variable bass boost (0-12 dB at 45 Hz)
• switchable subsonic filter (Off/25 Hz, 12 dB/octave)
• wired remote bass level control included

More Info:

preamp and speaker-level inputs

speaker wire-to-RCA adapters required for speaker-level input

DC offset-sensing turn-on with speaker-level input

wiring, fuse, and hardware not included with amplifier

4-gauge power and ground leads and a 40A fuse recommended

dimensions: 11-7/8""""W x 2-1'4""""H x 5-7/8""""D

warranty: 1 year
