DESCRIPTION

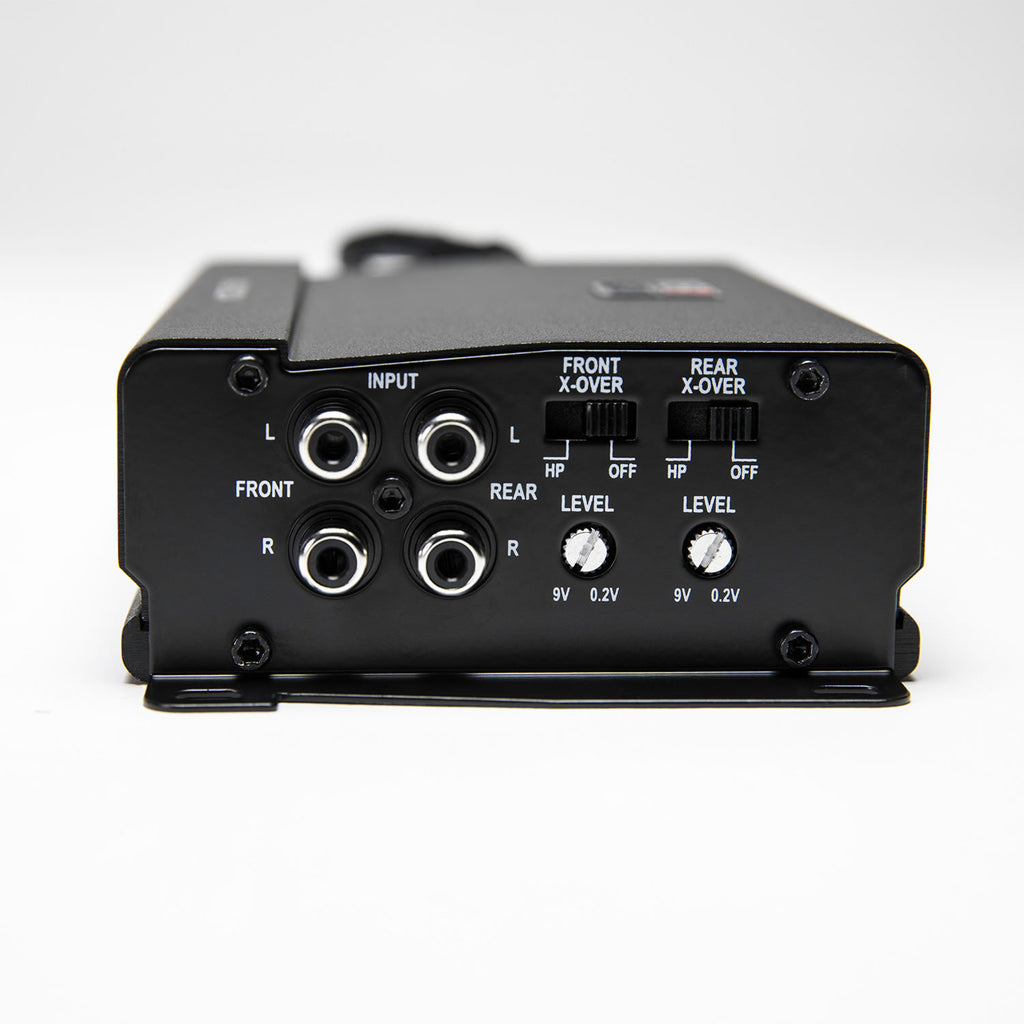

MB Quart compact Four Channel, 320 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors.
SPECIFICATIONS
- Class : Full Range Class D
- Variable Voltage : 0.2V~9V
- Signal to Noise Ratio : >90dB
- Frequency Response : 20Hz-20kHz
- Crossover Type : N/A
- Crossover Frequency Range : CH1 & CH2
- Switched HP/ Full : Crossover Frequency Range
- CH3 & CH4 : Switched HP/ Full
- Bass Boost : 0-12dB@45Hz
- Subsonic Filter : N/A
- Power @ 2-Ohms : 4 x 80W
- Power @ 4-Ohms : 4 x 40W
- Total Channels : 4
- Audio Inputs : RCA
- Power Terminal 12v/GND : Molex 10 ga
- Speaker Terminal Wire Gauge : Molex Plug Connector
- Fusing : 1 x 30 Amps
- Certifications : Marine & Powersports
- Dimensions : 3.70 X 5.51 X 1.77 in
