DESCRIPTION

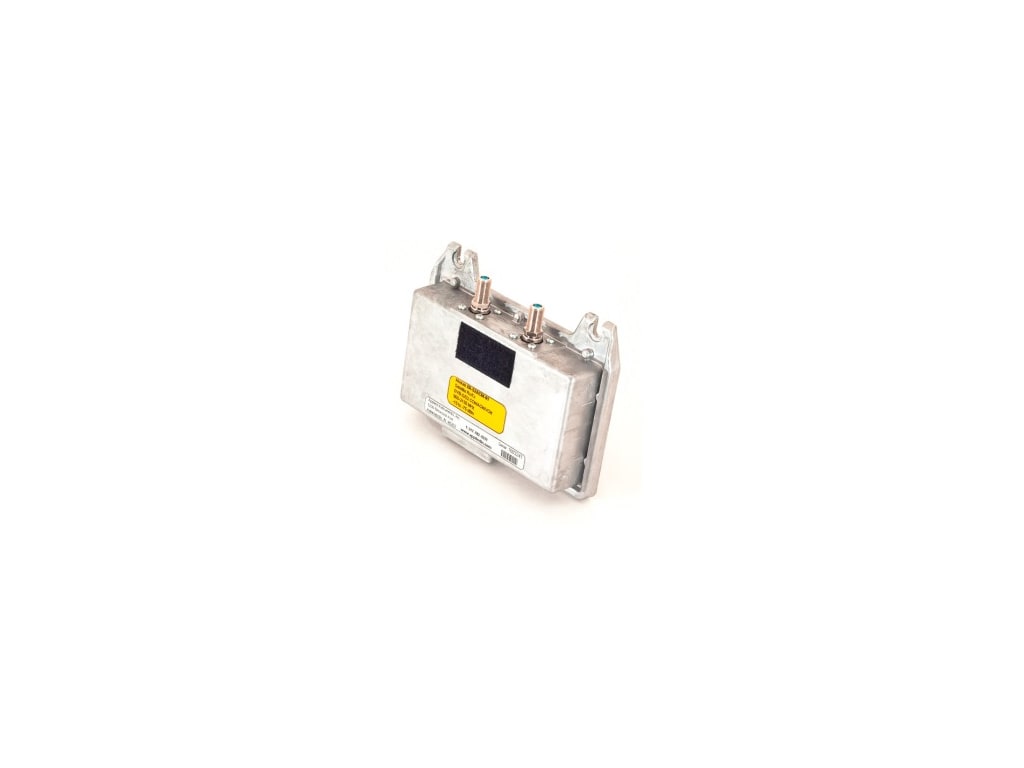

The XR-S2ACM-01 from Applied Instruments is a tuner module for use with the XR-3 Modular Test Instrument Base Unit. It allows for testing VSAT, Broadcast TVRO, and International DTH.
SPECIFICATIONS
- Compatible with XR-3 Modular Test Instrument
- Friendly user interface
- Satellite ID by "align-to-lock" or "automatic scan"
- ID multi-lock algorithm eliminates false positives
- Powers LNBs and multi-switches
- Use for L, C, X, Ku, or Ka band applications
- High sensitivity assures alignment optimization
- Geo-sensitive "Field Guide" software database stores all compatible satellites and transponders per global region
- Program and store up to 256 custom transponders
- Controls multi-LNBs/switches with 22kHz DiSEqC tone
- Manually tune to custom transponders using front panel Keypad
- Audible tone for signal lock or peak
- Frequency Range: 900-2150 MHz
- Tuning Resolution: 4 kHz
- Signal Level Range: .-75 to -15 dBm (+34 to +94 dBuV)
- RF Level Accuracy: +/- 2 dB typical, 3 dB max
- Signal Lock Formats: DVB-S (QPSK), DVB-S2 (QPSK, 8PSK, 16APSK, 32APSK, CCM, VCM, ACM), DSS / DIRECTV Legacy (QPSK)
- Impedance: 75 Ohm
- LNB Power: 13VDC for V/R, 18VDC for H/L
- 21VDC for DIRECTV SWiM LNBs, 29VDC
- Switch Control: 22 kHz, DiSEqC
- RF Connector: F barrel, field replaceable
